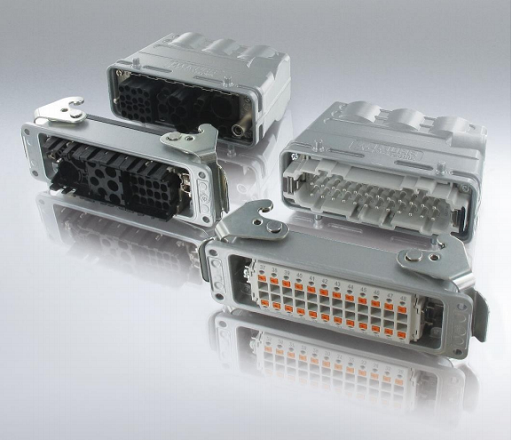

II. MODLINK HEAVY OVERVIEW
– Fixed pole or modular heavy duty connectors.
– We offer for ever application a suitable connector
+ Power
+ Signals
+ Data’s
+ Pneumatics
– All housings are made of die-cast aluminum
– Different fixed-pole and modular contact inserts for high flexibility
– Totally configurable
III. MODLINK HEAVY HOUSINGS
– Four different housing types, each in seven different sizes
– Three different locking types
– Housing up to degree of protection IP68 – maximum tightness
IV. MODLINK HEAVY INSERT
Our program includes a wide range of different fixed pole inserts
+ Rated voltages up to 830 V are possible
+ Rated currents up to 80 A are possible
+ Different pole numbers are possible (min.3 … max. 64)
V. MODLINK HEAVY MODULAR
Frames
+ Our portfolio includes frames for four different sizes
+ Two PE at each frame
+ Harting & Phoenix modules can be also used
VI. Modules
Module for different applications
+ Power
+ Signals
+ Data (RJ45, D-Sub etc.)
+ Pneumatics
+ Up to 20 contacts per module
